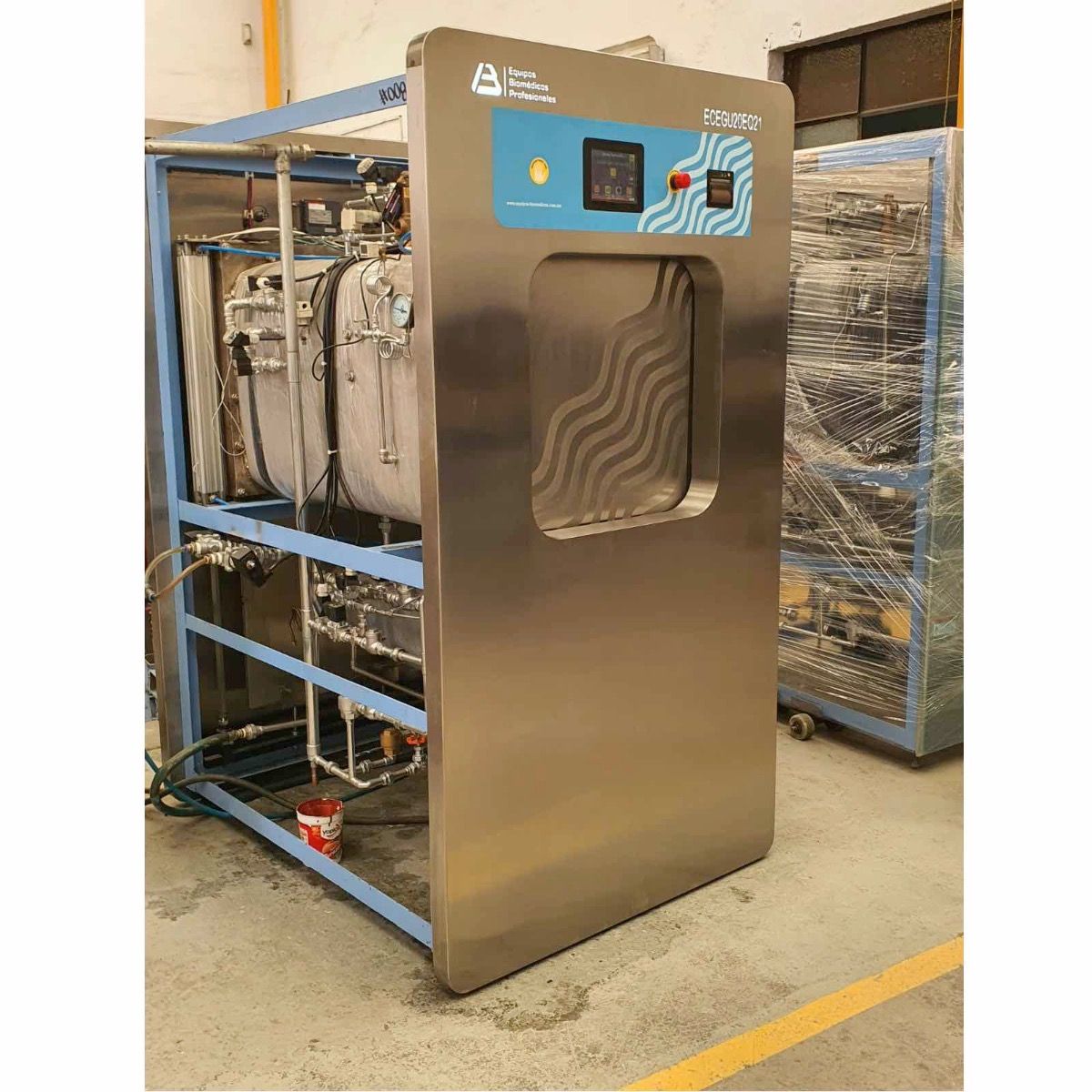

Microprocessor-controlled 250-liter 50x50x96 cm self-generating steam autoclave with sliding door, PLC Cat. EBP-ECEGU20EQ21-D Brand EBP

Microprocessor-Controlled Self-Generated Steam Autoclave with Sliding Door, 250 liters, 50x50x96 cm, PLC, Cat. EBP-ECEGU20EQ21-D, EBP Brand

Features:

• Self-generated steam sterilizer for CEYE, medium-sized with a hinged door, "touchscreen" microprocessor controlled
• Fully automatic operation and manual option.
• Air removal through a vacuum system using a water ejector with a minimum efficiency of 21 inHg.
• Horizontal square chamber.
• Chamber dimensions of 20 x 20 x 38”
• Chamber capacity of 250 liters.
• Chamber made of AISI 316L stainless steel, with SANITARY finish, 6.36 mm thick.
• Jacket made of AISI 316L stainless steel, 6.36 mm thick.
• Steam jacket: AISI 304 stainless steel material, with independent safety valves for chamber and jacket.
• External panels made of AISI 304 stainless steel.
• Sanitary 2B polishing
• Thermal insulation of mineral wool, 40-90 mm thick.
• With a hinged door opening from right to left, made of 12mm CNC machined stainless steel, or vice versa.
• With an electrical and mechanical safety device to prevent cycles from starting or opening when there is minimal internal pressure.
• Double PT100 temperature sensor in the chamber and jacket respectively.
• Pressure regulating valve for direct steam line from boiler, as well as a trapping system to prevent excess humidity.
• Emergency stop button and 10 MINIMUM pre-set programs that include:
  • Textiles at 134 ºC
  • Instruments 134 ºC
  • Flash 134 ºC
  • Express 134°C
  • Prions 134°C
  • Containers (SFPP) 134°C
  • Liquids at 121 ºC with option to process Milk Formulas
  • Gloves 121 ºC.
• Additionally, pre-set test programs:
  • Vacuum test, and Bowie & Dick test.
• Independent control and recorder via industrial microcomputer (PLC)
• High-quality 5.7" color TFT touchscreen with integrated PLC to perform the functions of:
  • Access to program selection menus
  • Information, maintenance, and statistics;
  • Door opening, signaling its status
  • Display of program parameters
  • Online monitoring of current cycle data (temperature, pressure, phase time, cycle time, and phase name)
  • Display and management of operating alarms and/or handling errors, cycle reset
  • Display of the process graph (pressure and temperature) in real time; user and password management.
• Integrated 304 type Stainless Steel steam generator with a 15kw resistance bank, and level control system by means of a stainless steel float.
• Data storage in EPROM for up to 10 years. Adjustable chamber temperature from 105ºC to 134 ºC
• Manometric indicator for chamber and jacket.
• Audible and visual alarms for malfunction and handling error, with the origin of the fault and/or error displayed on the digital screen.
• Alphanumeric digital printer for detailed recording of sterilization processes and parameters such as pressure, time, temperature, date, total cycle duration with storage capacity for the last 10,000 cycles, including 20 cycles with complete analog curves for traceability.
• Real-time display of different screens:
  • General Status
  • Display of pressure and/or temperature graphs
  • Countdown timers with large, high-contrast display.
• Sanitary stainless steel and copper piping and non-ferrous materials, HEPA filter of 0.2 microns or less.
• Standard Ethernet connection for monitoring and control.
• Printing of cycle parameters via printer
• User and password management for user and maintenance.
• Emergency stop button.
• Backlit front panel with high visibility that helps the user quickly and easily identify the equipment model.
• Equipped with chamber and steam pressure gauges and illuminated indication of emergency button activation.
• External dimensions of the sterilizer: 1710 x 700 x 1350 mm (modifiable depending on the customer).

• Installation, Training, and Commissioning Included in the operation once the adjustments have been evaluated according to the Mechanical Guide
• ECOLOGICAL Benefit: Programmable power-on
