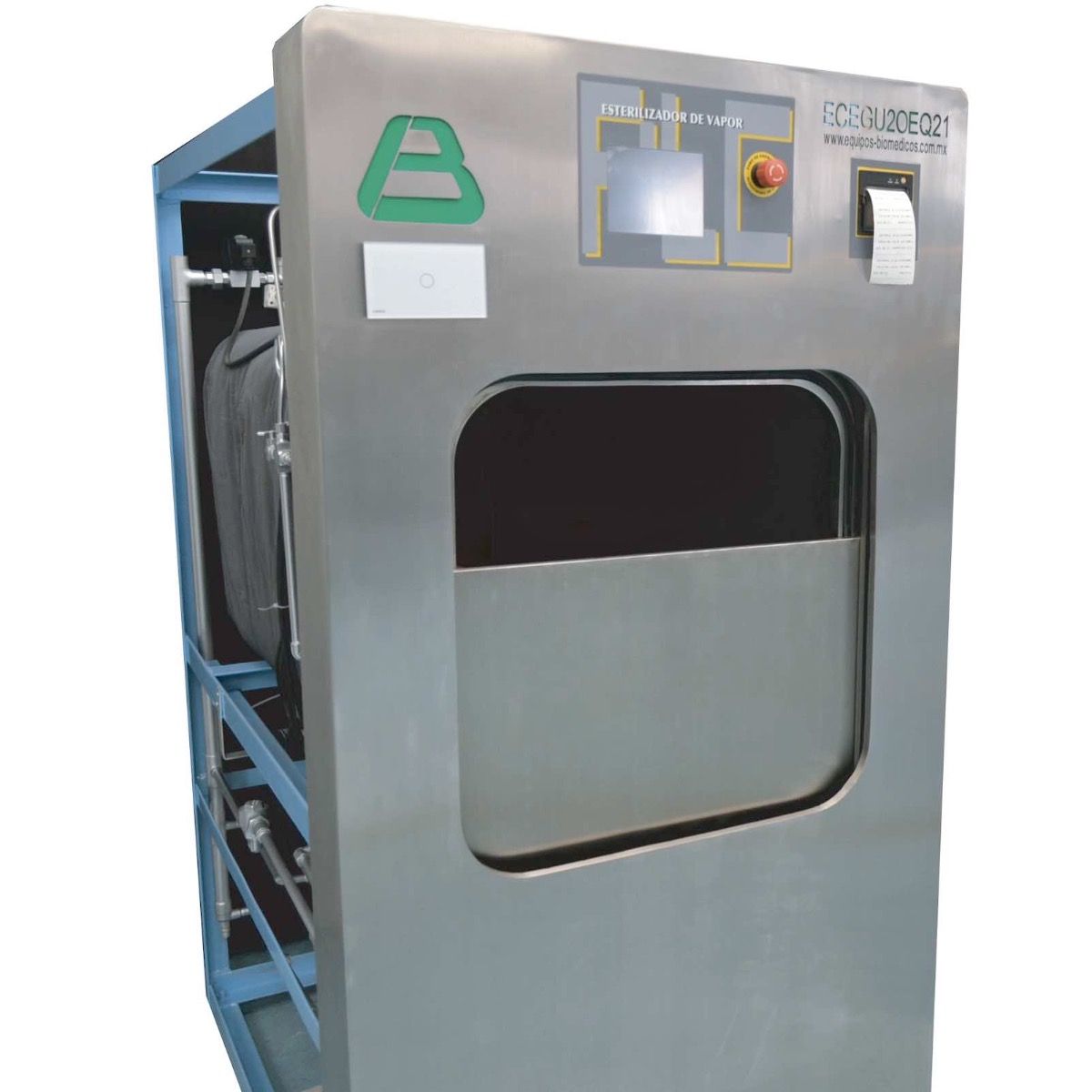

Self-contained steam autoclave with sliding door and touch screen, 312 liters 50x50x122cm (PLC) Cat. EBP-ECEGU203EQ21 EBP

Self-contained steam autoclave with sliding door and touch screen, 312 liters, 50x50x122cm (PLC) Cat. EBP-ECEGU203EQ21 EBP

Features:

• Model ECEGU203EQ21 (PLC)
• Self-contained steam sterilizer for CSUs, medium-sized with one sliding door, controlled by a "touch screen" microprocessor.
• Fully automatic and manual operation.
• Air removal through a vacuum system using a water ejector with a minimum efficiency of 21mmHg.
• Horizontal square chamber, chamber dimensions 50 x 50 x 122 cm, chamber capacity 312 liters.
• Chamber in AISI 316L stainless steel, with SANITARY finish, 6.36 mm thick.
• Jacket in AISI 316L stainless steel, 6.36 mm thick. Steam jacket: AISI 304 stainless steel material, with independent safety valves for chamber and jacket.
• Front panels in AISI 304 stainless steel, 2B sanitary polished, mineral wool thermal insulation 20-25 mm thick.
• With sliding opening door in 12mm stainless steel, CNC machined or vice versa, with electrical and mechanical safety device to prevent cycles from starting or opening when there is minimal internal pressure.
• Double PT100 temperature sensor in chamber and jacket respectively.
• 15kw generator completely in stainless steel, as well as a trapping system to prevent excessive humidity.
• Emergency stop button
• MINIMUM 10 pre-set programs including:
  • Textiles at 134 ºC
  • Instruments at 134 ºC
  • Flash at 134 ºC
  • Express at 134°C
  • Prions at 134°C
  • Containers (SFPP) at 134°C
  • Liquids at 121 ºC with option to process infant formulas
  • Gloves at 121 ºC.
• Additionally, pre-set test programs:
  • Vacuum test
  • Bowie & Dick test.
• Independent control and recorder via industrial microcomputer (PLC).
• High-quality 5.7" color TFT touch screen with integrated PLC for the following functions:
  • Access to program selection menus,
  • Information
  • Maintenance and statistics
  • Door opening
  • Status display
  • Display of program parameters
  • Online monitoring of current cycle data (temperature, pressure, phase time, cycle time, and phase name)
  • Display and management of operating alarms and/or handling errors, cycle reset
  • Real-time display of the process graph (pressure and temperature)
  • User and password management.
• Data storage in EPROM for up to 10 years.
• Adjustable chamber temperature from 105ºC to 134 ºC
• Pressure gauge for chamber and jacket.
• Audible and visual alarms for malfunction and operating errors, with the origin of the fault and/or error displayed on the digital screen.
• Alphanumeric digital printer for detailed recording of sterilization processes and parameters such as pressure, time, temperature, date, total cycle duration with storage capacity for the last 10,000 cycles, including 20 cycles with complete analog curves for traceability.
• Real-time display of different screens:
  • General Status
  • Display of pressure and/or temperature graphs
  • Countdown timers with enormous high-contrast display.
• Sanitary stainless steel, copper, and non-ferrous piping.
• HEPA filter of 0.2 microns or less.
• Standard Ethernet connection for monitoring and control.
• Printing of cycle parameters using a printer.
• User and password management for user and maintenance.
• Emergency stop button.
• Electrical connection to EBP Aquatar water recirculator (not included), with condensate recovery and cooling system that favors the elimination of non-condensable gases and achieves 99% energy savings of the water used in vacuum generation.
• Highly visible backlit front panel that helps the user quickly and easily identify the equipment model.
• Equipped with chamber and steam pressure gauges and illuminated indication of emergency button activation.
• External dimensions of the sterilizer: 1710 x 710 x 1155 mm (modifiable depending on the client).
• ECOLOGICAL benefit: Programmable equipment on/off for electrical energy saving.
• Connection for EBP Aquatar water recirculator, to reuse 90% of water consumption (2000 liters per cycle).
• Low energy consumption: 15kw instead of 30kw in the resistance bank.
• POWER SUPPLY: 220V/60Hz 50A, ±10%.

Certifications:

• ASME "U" Certificate
• ISO 9001-2015 Quality Certificate
• Cofepris Sanitary Registration
• ISO 13485-2016 Quality Certificate
• Good Manufacturing Practices Certificate
