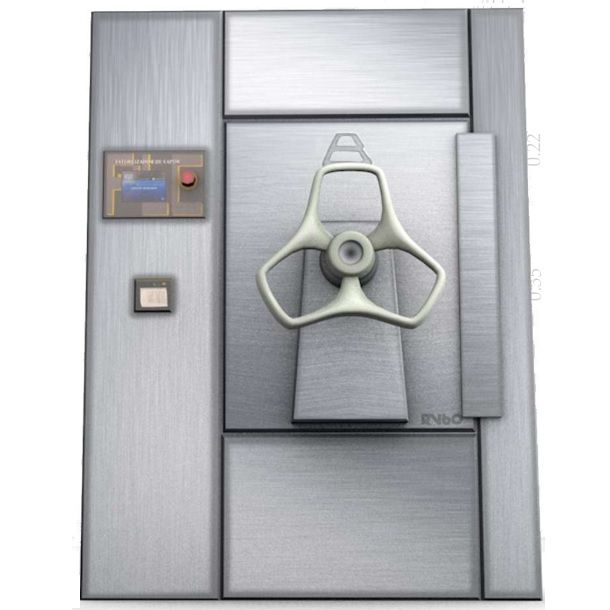

Direct steam autoclave, for CSSD with double door 60x90x152 cm Cat. EBP-RV60PPEQ21 Brand EBP

Direct steam autoclave, for CSSD with double door 60x90x152 cm Cat. EBP-RV60PPEQ21 Brand EBP

Direct steam sterilizer, for CSSD with double door Cat. EBP-RV60PPEQ21 Brand EBP

The manufacturer in Mexico of EBP registered brand autoclaves launches its new RV60/RV3648/RV3660 line based on direct steam from a boiler or self-generated steam.

It features a fully automatic computerized electronic PLC (Programmable Logic Control) microprocessor control with a 5.7", 7" or larger "Touch Screen" display.

In color with the option to maximize the high-definition backlight display, with the option of manual operation.

To sterilize any material that resists steam humidity and high temperatures; integrated in the upper front or side to save space.

The control has twelve factory pre-programmed cycles by highly qualified personnel, achieving reliable sterilization within current AAMI (Association for the Advancement of Medical Instrumentation) standards.

With the possibility of varying the temperature and time of each cycle from 0 to 99 minutes according to process needs, giving us a variety of more than 20 cycles, the required pre-vacuums, and the selected drying time from 0 to 30 minutes.

The control contains a backup to maintain the program in case of power interruption for up to 120 minutes, and a voltage regulator for protection.

It has a program that stores the history of the last 1,000 cycles performed and any failures on a USB to be downloaded to a PC by EBP personnel for consultation or printing.

Features:

• Horizontal rectangular chamber
• Chamber dimensions of 60x90x152 cm (24x36x60in)
• Chamber capacity of 820 liters.
• Chamber in AISI 316L stainless steel, with sanitary finish, 6.36 mm thick.
• Jacket in AISI 316L stainless steel, 6.36 mm thick.
• Steam jacket: AISI 304 stainless steel material, with independent safety valves for chamber and jacket.
• External panels in AISI 304 stainless steel.
• 2B sanitary polish, mineral wool thermal insulation 40-90 mm thick
• With double hinged door opening right-left of 12mm stainless steel machined in CNC or vice versa, with electrical and mechanical safety device to prevent cycles from starting or opening with minimal internal pressure.
• With double hinged door opening right-left of 12mm stainless steel machined in CNC or vice versa, with electrical and mechanical safety device to prevent cycles from starting or opening with minimal internal pressure.
• Horizontal rectangular chamber

Technical specifications

• Chamber dimensions of 60x90x152 cm (24x36x60in)
• Chamber capacity of 820 liters.
• Chamber in AISI 316L stainless steel, with sanitary finish, 6.36 mm thick.
• Jacket in AISI 316L stainless steel, 6.36 mm thick.
• Steam jacket: AISI 304 stainless steel material, with independent safety valves for chamber and jacket.
• External panels in AISI 304 stainless steel.
• 2B sanitary polish, mineral wool thermal insulation 40-90 mm thick
• With double hinged door opening right-left of 12mm stainless steel machined in CNC or vice versa, with electrical and mechanical safety device to prevent cycles from starting or opening with minimal internal pressure.
• Power supply: 110V/60Hz 5A, ±10%.
• ISO 9001-2015 Quality Certificate
• ISO 13485-2016 Quality Certificate
• Cofepris Sanitary Registration
• Good Manufacturing Practices Certificate
