Portable Medical Infusion Pump, Electronic LCD Device, Rechargeable, High Precision, Volumetric, Digital

Introduction:

SH-609 Infusion Pump is a volumetric infusion pump, featuring high safety, easy operation and long service life. Flow control with high precision and comprehensive alarm measures ensure patient safety and optimal therapeutic effect.

Features:

1) Flow control with high precision ensures optimal therapeutic effect.
2) Compatible with most standard IV sets.
3) The new IV set provided by the user can be calibrated by suppliers, and infusion parameters can be input into the pump, which ensures accuracy.
4) 2.8'', with a length of inches.
5) Operate with keys.
6) The residual infusion time can be displayed during infusion.
7) With reminder function to start infusion.
8) Alarm for occlusion, air bubble, door open, and motor failure, etc.
9) The threshold for air bubble and pressure alarm can be adjusted by medical staff.
10) The IV set clamp prevents liquid from flowing freely when the pump door is accidentally opened.
11) BOLUS system prevents sudden obstruction from disappearing by instantaneous injection of high doses.
12) Automatically stop infusing during alarm (except for "NEAR END", "KVO" and "LOW BATTERY" alarms).
13) The alarm volume can be adjusted.
14) Power supply: AC/DC and built-in lithium battery.
15) Compact aluminum housings and robust construction.
16) The USB port is convenient for technical staff to upgrade the software.

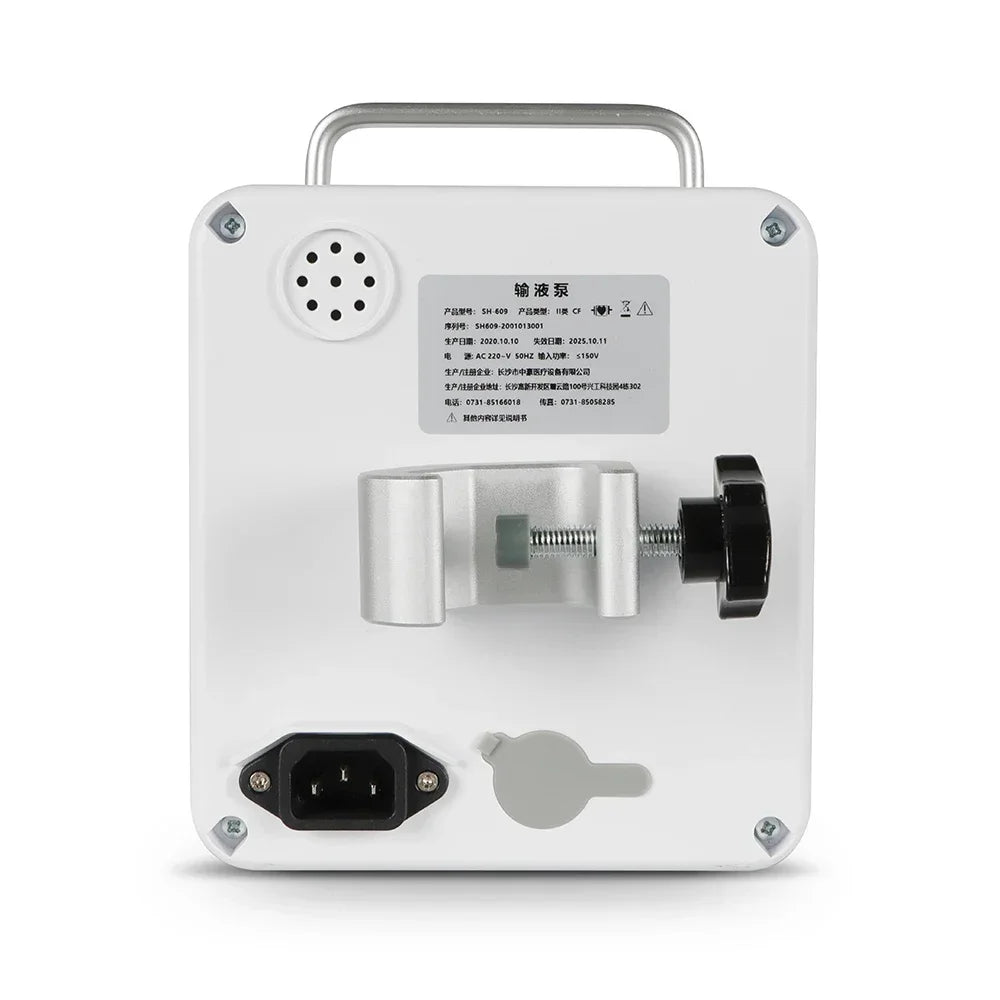

17) The infusion pump can be mounted on the infusion pole in many directions by means of the versatile bracket.
18) Infusion parameters can be saved after power-off.

Performance

Type: Volumetric infusion pump
◆ Infusion rate: 1~699mL/h, increment: 1mL/h
◆ Total volume: 1~9999mL, increment: 1mL
◆ Accuracy: ±5%(use the calibrated IV set)
◆ KVO rate: 1~5mL/h (can be adjusted by professional medical staff)
◆ Display information: flow rate, total volume, accumulated infusion volume, residual time
◆ Alarm functions: near end, KVO state, low battery, no power, pressure failure, door failure, air bubble, open door, occlusion, infusion reminder, communication failure and motor failure.
◆ Air bubble detector: ultrasonic
◆ Sensitivity for air bubble detector: 0.01~0.14mL (can be adjusted by professional medical staff)
◆ Pressure sensor sensitivity: 1~7 grades (can be adjusted by professional medical staff)
◆ Safety Classification: Class I, type BF applied part
◆ Waterproof grade: IPX1
◆ Working mode: continuous work
◆ Power supply: AC: 100~240V, 50/60Hz or DC: 12V
Rechargeable lithium polymer battery, 7.4V/3500mAh

Special safety measures:

The IV-set clamp prevents liquid from flowing freely when the pump door is accidentally opened.
◆ The air bubble detector with high accuracy prevents air bubbles from entering the patient's body.
◆ The pressure sensor prevents occlusion for the IV set.
◆ A.B.S. system, when the high-voltage occlusion alarm appears, immediately stop infusing and automatically remove pressure from the IV set, which prevents high-dose instantaneous injection from disappearing due to sudden obstruction.
◆ Infusion parameters during infusion are protected against arbitrary changes.
◆ With password protection function (in system parameter settings and IV set type interface).

Physical characteristics

Dimension: 197mm(L)× 145mm(W)× 135mm(H)
Weight: 2Kg

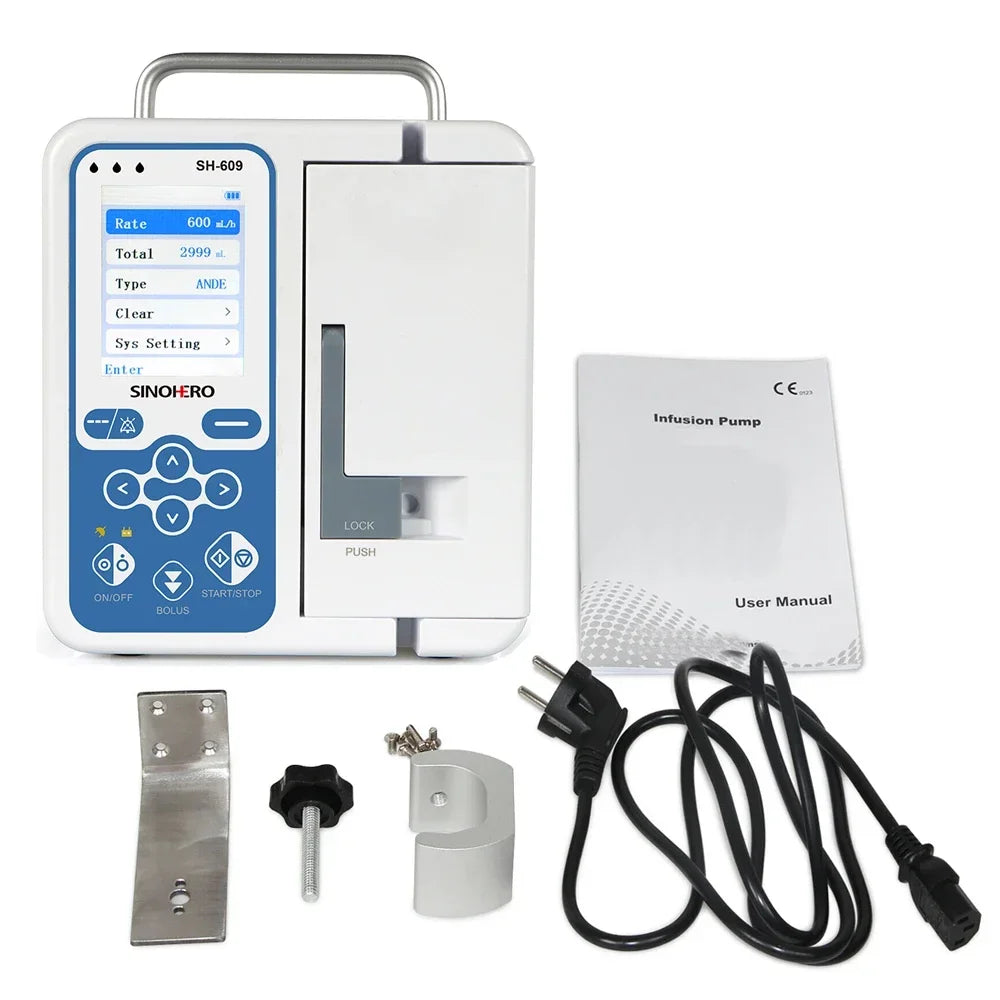

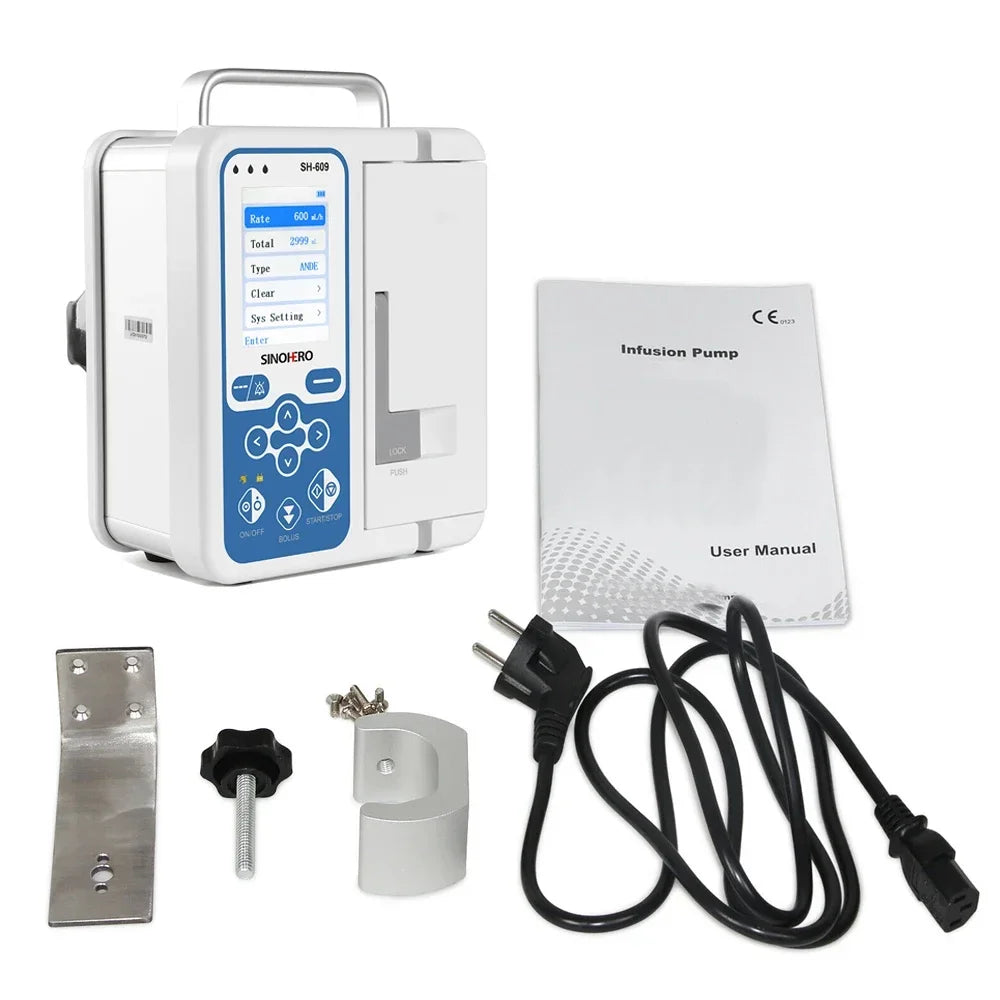

Package included:

1 SH-609 Infusion Pump
1 versatile stand
1 power cord
1 user manual
