- SKU: cabecero-para-pacientes-horizontal-de-1-50-m-3-tomasrieliluminacion
- BARCODE: cabecero-para-pacientes-horizontal-de-1-50-m-3-tomasrieliluminacion
- VENDOR: Prosalud.me

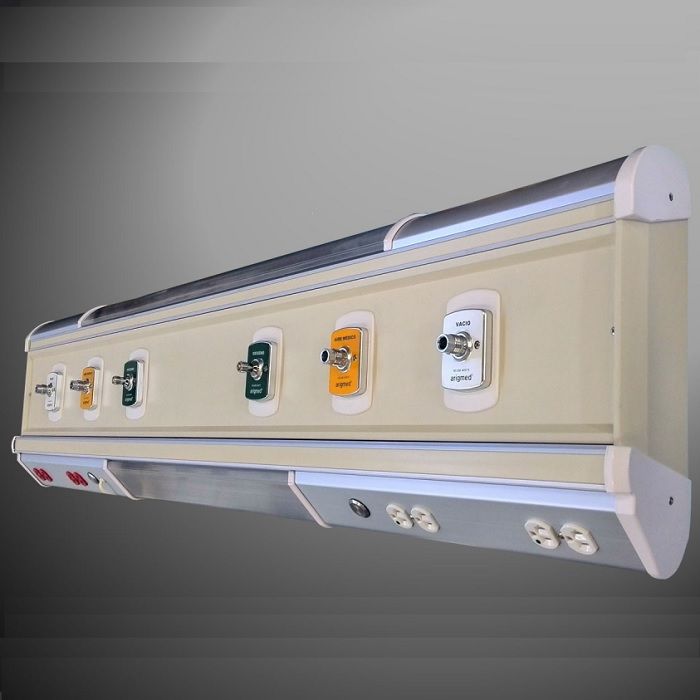

Horizontal patient headboard 1.50 m, 3 outlets + rail + lighting, Mod. Horizon III Puritan type, Cat. AGM-COHOIIIA415003-000639, Arigmed Brand
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
1.50 m Horizontal Patient Bed Head Unit, 3 outlets + rail + lighting, Mod. Horizon III Puritan type, Cat. AGM-COHOIIIA415003-000639, Arigmed Brand
Includes:
- Accessories Unit Quantity
- Multipurpose basket or rack (medicine holder), made of steel rod with baked electrostatic paint finish or PVC plastic (plastisol) coating, does not include clamp support for horizontal rail. Pc 1
- Structure manufactured with special extrusion aluminum profiles, alloy 6063, temper 5, with minimum thicknesses of 2.5 and 3mm, in compliance with ASTM B221-02 A/A. For assembly of Horizon III A418003 head console, 0.363m high and of required length, includes 1 lower horizontal rail for mounting and sliding auxiliary medical equipment; front panel in aluminum profile with finishes specified in the components list. UL (Underwriter Laboratories) listed equipment M 1.5
- Clamp support for mounting and sliding auxiliary medical equipment on the quick-mount (spring) horizontal rail of the console, made of aluminum with a natural matte anodized finish (support for various baskets, document holders, slides, IV pole supports, and accessories for medical equipment whose weight does not exceed 5kg). Pc 2
- Lower lighting module for patient, includes a 60cm long T-8 LED tube, 4300°K color temperature, 110-220VAC power supply, controlled with a pull chain switch (on-off), 110-220VAC, diffusers made of transparent polycarbonate extrusion with light guides. Pc 1
- Upper lighting module for patient, includes a 60cm long T-8 LED tube, 4300°K color temperature, 110-220VAC power supply, controlled with a 25mm diameter 2A/220VAC flat switch made of IP65 stainless steel, diffusers made of transparent polycarbonate extrusion with light guides. Pc 1
- Coating for front panel with baked electrostatic powder paint, standard colors: white (311-70), almond beige (HML10053-1), Merida gray (411-16), leaf green (HVL20266), dark blue (311-07), light blue (29057) M 1.5
- Double hospital-grade electrical outlet NEMA 5-20R (American type) electrical voltage 20A 125V 2P3H CLV.8300-I ivory color. Pc 2
- Double hospital-grade electrical outlet NEMA 5-20R (American type) electrical voltage 20A 125V 2P3H CLV.8300-R red color Pc 3
- IV pole support with 2 hooks, made of aluminum, stainless steel, and injected ABS thermoplastic, does not include clamp support for horizontal rail. Pc 1
- Side covers at each end of the console made of high-resistance ABS thermoplastic injection for each end of the console (upper and lower set) Set 2
- Complete medical gas outlet, Arigmed Inox series, quick-connect Puritan Bennett geometric type for medical air Pc 1
- Complete medical gas outlet, Arigmed Inox series, quick-connect Puritan Bennett geometric type for medical oxygen Pc 1
- Complete medical gas outlet, Arigmed Inox series, quick-connect Puritan Bennett geometric type for medical vacuum Pc 1
- Internal type L copper tubing for each medical gas outlet, maximum length of 1.00m, Nacobre brand or similar in quality, in compliance with ASTM B819, clean for use with oxygen, includes connections for direction changes within the console (copper elbows and couplings) coupling with 10mm tubing from the medical gas outlet (latch valve). Diameters Ø13mm (1/2") for positive gases and Ø19mm (3/4") for surgical medical vacuum and anesthesia gas evacuation Pc 3
Features:
- Patient Headboard Model Horizon III, with one or two horizontal service rails for mounting and sliding auxiliary medical equipment; 5 separate compartments for solid state installations; Manufactured from special extrusion aluminum profile and complies with ASTM B-221-02 A/A, alloy 6063 temper 5. Minimum profile thickness of 2.5 and 3 mm.
Service Rails:
- 1 lower rail for supporting and sliding auxiliary medical equipment
- 2 rails (lower and upper) for supporting and sliding auxiliary medical equipment
Capacity to Accommodate Systems:
- Lighting
- Electrical Receptacles
- Voice and Data
- Medical Gases
- Supports for Auxiliary Medical Equipment
Available Finishes:
- Natural matte anodized to 10 microns
- Baked electrostatic powder paint (RAL)
- Sublimated wood imitation (light or dark tones)
- Decorative plastic laminate on a 16 mm thick compressed MDF wood panel with a phenolic laminate or 12 gauge aluminum sheet back finish as a fire retardant.
Configurations:
- For 1-bed service (From 1.20 m in length)
- For multiple-bed service (Length upon prior specification)
- More than 38 configurations available (Consult factory)
Maximum Load Capacity:
- 150 kg/m
Certifications:
- UL
