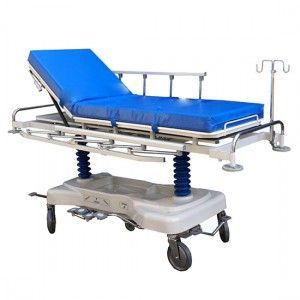

Hydraulic radiolucent transfer stretcher Cat. DTP-TS1-250 Medimatic

Hydraulic Radiolucent Transfer Stretcher Cat. DTP-TS1-250 Medimatic

Features:

• Manufactured with the most resistant and appropriate materials for the intense use in modern hospital units. The versatility of its movements and its multiple functions offer medical personnel an excellent option, with features equivalent or superior to products on the international market.
• Allows for imaging studies (radiological and fluoroscopic) as the entire patient surface is radiolucent.
• A single person can push and steer it through any hallway or room in the hospital thanks to the integration of a fifth wheel located in the center of the base.
• Its backrest reclines very easily without requiring great effort from the operator. The height adjustment allows the patient to be placed in an examination position and the stretcher to be positioned at the necessary height for transferring the patient to an operating table or any bed. It can also achieve an excellent degree of platform tilt if the patient's condition requires it.

Main features:

• The entire patient surface is radiolucent to facilitate radiological and fluoroscopic studies.
• X-ray cassette tray.
• Two-column hydraulic system for height adjustment, Trendelenburg, and reverse Trendelenburg.
• Pneumatic system for backrest inclination (Fowler) with lock.
• Height adjustment system activated by pedals on both sides.
• Articulated side rails for vertical movement as patient protection, foldable and collapsible with position lock, 119 cm long, made of 304 stainless steel.
• Wheels with universal braking system and centralized steering, activated by pedals.
• Fifth-wheel system that allows rotation and steering.
• Base cover with areas for placing patient belongings (basket type), oxygen tank, and minor supplies.
• Anti-shock protective wheels on each corner and along the stretcher bed for impact absorption.
• One IV pole station on each corner.
• Two height-adjustable IV poles.
• Supports for storing IV poles.
• Antistatic mattress, made of hygienic, hypoallergenic material, with dimensions according to the stretcher and 7.5 cm thick.

Dimensions and weight:

• Overall length: 210 cm.
• Overall width: 75 cm.
• Platform length: 200 cm.
• Platform width: 70 cm.
• Load capacity: 230 kg.
• Wheel diameter: 20.3 cm.
• Mattress thickness: 7.5 cm.
• Stretcher weight: 90 kg.
• Mattress length: 65 cm x 190 cm.
• Mattress weight: 6 kg.

Movements:

• Backrest Fowler: 0° to 90°.
• Up-down (adjustable platform height from floor): 60 cm to 90 cm.
• Trendelenburg: 18°.
• Reverse Trendelenburg: 18°.
