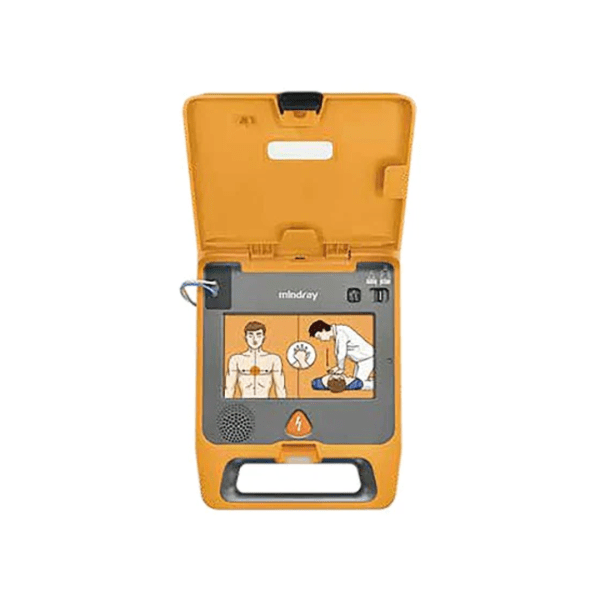

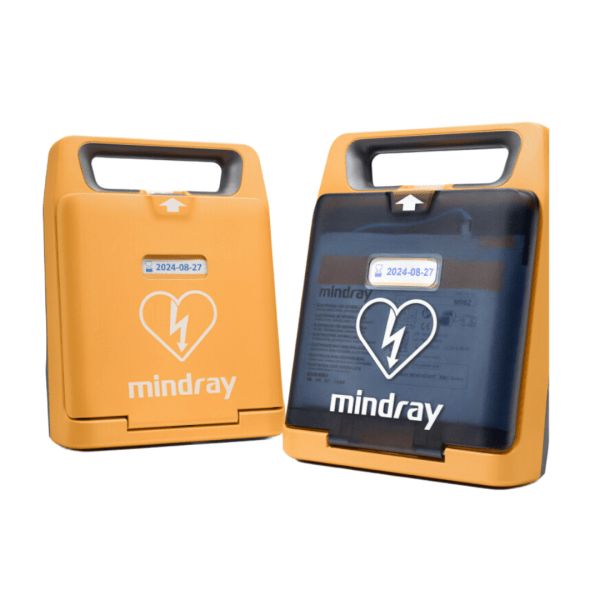

BeneHeart C1A AED Defibrillator

The Mindray BeneHeart C1A AED Defibrillator is an intelligent device designed to handle cardiac emergencies with high efficiency. This defibrillator incorporates innovative ResQNaviTM technology, which adapts to the rescuer's skills and provides step-by-step instructions during the resuscitation process. It offers quick access to defibrillator functions by powering on when the lid is opened. It provides versatility with its option to select between three languages, its adult/child mode, and its semi-automatic version, making it ideal for users with limited experience in defibrillator operation.

Features of the BeneHeart C1A AED Defibrillator:

• Powers on when the lid is opened.
• Up to 3 languages to select from.
• Adult/child mode.
• Semi-automatic version.

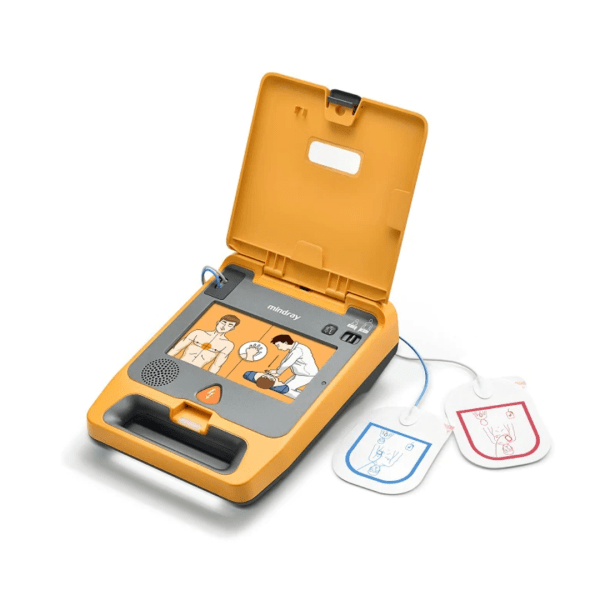

• Pre-connected adult/child electrodes.
• CPR mode can be configured as 30:2, 15:2, and manual only.
• Easy switching from Adult to Pediatric mode.
• CPR Metronome.
• Real-time CPR feedback.
• CPR process prompts can encourage the rescuer just like a personal instructor and help save lives.

ResQNaviTM

In non-professional life-saving interventions, rescuers' skills in the resuscitation process are highly variable. Those without resuscitation experience need more detailed advice, while overly complicated instructions could reduce rescuers' efficiency. Based on extensive research into user behavior and psychological data, ResQNaviTM technology can identify each rescuer's condition and provide appropriate step-by-step instructions for that rescuer throughout the resuscitation process. ResQNaviTM provides comprehensive CPR navigation for rescuers in accordance with the latest AHA/ERC recommendations, to help them perform quality CPR. ResQNaviTM Intelligent Interactive Lifesaving Guide.

QShockTM

Every second that passes reduces the success rate of defibrillation. BeneHeart C1A is equipped with the new QShockTM technology. With QShockTM, BeneHeart C1A can increase the chances of a better defibrillation outcome. The first shock administration takes less than 8 seconds. QShockTM not only greatly shortens power-on time and heart rhythm analysis but also performs synchronous pre-charging during the heart rhythm analysis process. Once the rhythm analysis is complete, energy can be delivered immediately, so that victims receive an electric shock as soon as possible, and rescuers work with less stress.

AED-AlertTM

The AED-AlertTM system helps managers remotely and centrally manage AED devices using advanced IoT technology, and replaces manual inspection with automatic testing, to reduce daily maintenance costs. AED-AlertTM provides comprehensive device status reminders to ensure that AEDs are always ready for use, thereby reducing daily maintenance risks.

Technical Specifications

• Charging time: Less than 8 seconds with QShockTM technology.
• Display: High brightness LED.
• Waveform type: Biphasic.
• Maximum output energy: 200 Joules for adults, 50 Joules for children.
• Operating modes: Adult mode and child mode.
• Languages: Up to 3 languages available.
• Power supply: Non-rechargeable lithium battery.

Package Contents:

• Base Configuration: BeneHeart C1A Defibrillator.
• Pre-connected adult/child electrodes.
• User manual.
• Certificates: CE (European Community).
