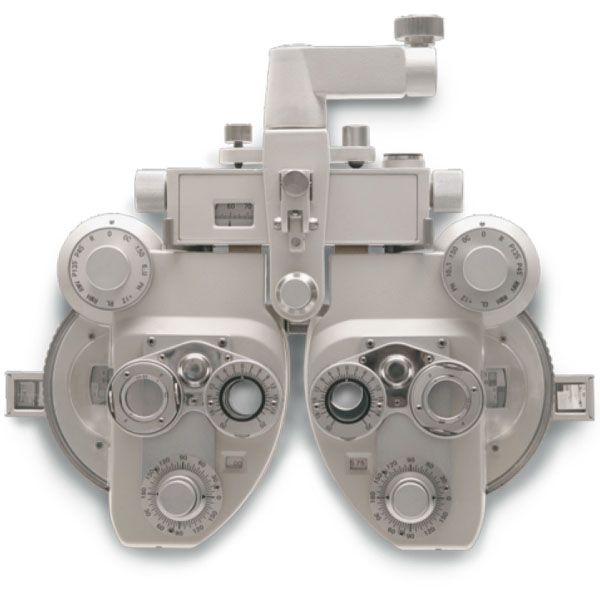

Manual Phoropter with cross cylinder loupe Cat. LUV-R-2500 LUXVISION
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Manual Phoropter with Cross Cylinder Magnifier Cat. LUV-R-2500 LUXVISION
Description:
Luxvision's durable R-2500 phoropter comes with extensive spherical and cylinder powers, as well as various built-in lenses.
The Luxvision R-2500 offers a large number of built-in features as well as accessories not common in a manual phoropter.
Now you can efficiently, safely, and easily perform all the necessary functions for a manual refraction.
And thanks to the unit's high spherical and cylindrical powers, as well as its various built-in auxiliary lenses, you can measure any patient's vision.
Take a step forward and adapt the R-2500 to your needs with a wide range of accessory lenses.
The unit can also be purchased in black and white.
The possibilities are endless. Users will also enjoy an easy-to-use convergence system that allows you to switch between distance and near vision with a simple flick of a lever.
Astigmatism tests are also simplified as a result of a special mechanism in the cross-cylinder magnifier.
All this and more makes the Luxvision R-2500 a smart choice.
Features:
- High spherical powers
- Wide range of cylinder powers
- Simplified cross-cylinder measurements
- Near point chart and scale
- Rotary prism
- Interpupillary distance adjustment
- Built-in auxiliary lenses
- Optional accessory lenses
Specifications:
| Spherical power range | From +16.75D to -19.00D, with a minimum reading of 0.25D or 0.12D (when using a 0.12D auxiliary lens or an optional ±0.12D lens) From +26.75D to -29.00D (when using an optional +10.00D lens) |
| Cylinder power range | From 0 to -6.00, with a minimum reading of 0.25D or 0.12D (when using an auxiliary lens) From 0 to -8.00 (when using a -2.00D auxiliary lens) |
| Astigmatism axis scale | From 0 to 180° in 5° steps |
| Cross cylinder | ±0.25D, inverse type (synchronized with astigmatism axis) ±0.50D optional |
| Rotary prism | From 0 to 20ΔD in 1ΔD steps |
| Interpupillary adjustment | From 1.9in/48mm to 3.15in/80mm in 0.04in/1mm step (synchronized right and left) |
| Forehead rest adjustment | 16mm backward and forward |
| Convergence | Optical axes of the lenses are aligned at a distance of 15.74in/400mm from the corneal vertices (0.08in/2mm right and left and inward) Interpupillary distance allows convergence between 57mm and 80mm |
| Corneal distance device | 0.08in/2mm forward and 0.2in/5mm backward from the standard plane; with scale |
| Effective field of view | 19mm |
| Dimensions | 291-323mm / 11.4-12.7 inches wide x 315mm / 12.4 inches long x 85mm / 3.34 inches thick (includes knobs; 39mm / 1.53 inches for instrument only) |
| Weight | 5 kg / 11 lbs. |
| Accessories | Auxiliary lens (cylinder: -2.00D / 2pcs). Near point vision chart set. Sanitary face mask, 1 for each right and left side, others. |
