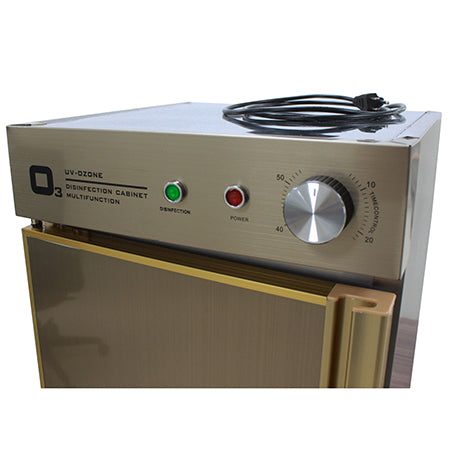

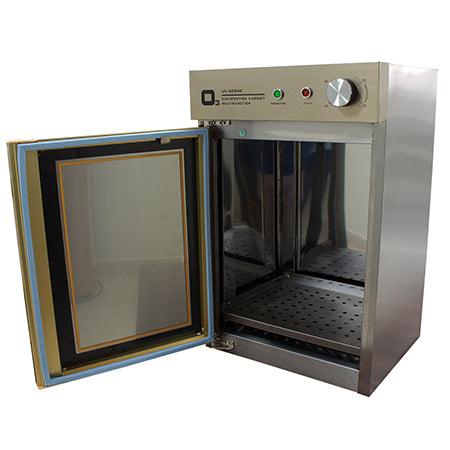

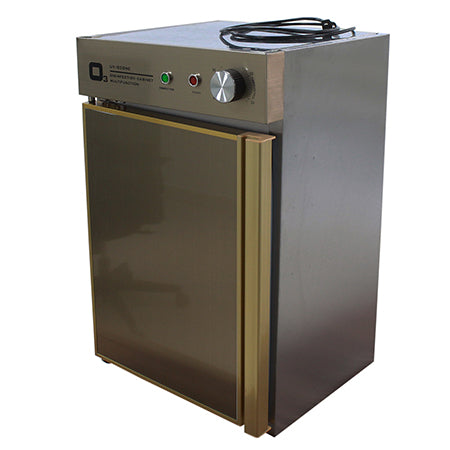

UV STERILIZER CABINET WITH 10W UVC LAMP PLUS OZONE

DISINFECTING CABINET W/10W UVC LAMP PLUS OZONE

General description:
Disinfecting cabinet with a 10W UVC sterilizing lamp. It integrates an ozone
generator for a dual sterilizing action. It is ideal for disinfecting books,
notebooks, magazines, or medium-sized items that can be placed inside the
cabinet. It features a timer for more practical use and a power-off protection
when opening the door for greater safety.

Features:
 UVC technology (253.7nm).

 10 W power.

 Ozone generator.

Applications:
 Sterilization of books, notebooks, and/or magazines.

 Sterilization of medium-sized items.

Specifications:
Technical parameters
Electrical input characteristics 127VAC, 60Hz
Lamp power 10W
Wavelength 253.7nm
Light source Quartz tube
Protections Power-off when opening the cabinet door
Dimensions 400x363x630mm
Weight 10kg

Mechanical dimensions:
Units: mm
630
363
400

Operating instructions:
Before operating this equipment, please consider the following usage notes: *Once the disinfection process is complete, wear a mask or face covering when opening
the cabinet door and ventilate the equipment for 30 minutes. Avoid inhaling the ozone
produced by the generator. 1. Connect the cabinet cable to the electrical outlet. Once the equipment is energized, the red LED indicator will light up.
2. Open the cabinet door, place the item(s) to be sterilized inside, and close the door.
3. Turn the timer to select the desired disinfection time. Once the disinfection process begins,
the green LED indicator will light up. The buzzer will sound when the disinfection process is complete.
4. Open the door, observing the usage considerations, and remove the sterilized item(s).
