BOTTLE WASHER MODEL LB-3 OTSA

Electric Bottle Washer

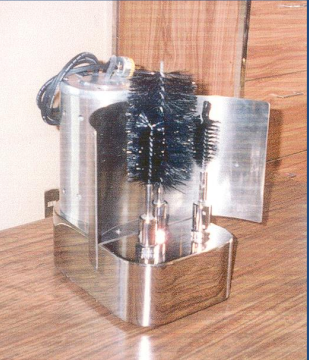

OTSA Model LB-3 Electric Bottle Washer

Description:

The OTSA Model LB-3 Electric Bottle Washer is an ideal piece of equipment for efficient bottle cleaning in medical units or private clinics. It operates on the principle of transmission by means of pulleys and a belt for greater friction power on the surface to be cleaned.

Specifications:

• Cover: In type-304 stainless steel diffuser type to prevent splashing.
• Brushes: It has a system of three brushes to facilitate bottle washing.
• Body: In type-304 stainless steel, with the versatility that it can be placed horizontally (on a table) or vertically (with wall mounting included).
• Cable: Heavy-duty with polarized plug.
• Motor: ½ H.P. 1725 revolutions per minute, 120 V / 60 Hz.

Benefits:

• Efficiency: Cleans bottles quickly and effectively.
• Power: Greater friction power for deep cleaning.
• Versatility: Can be placed horizontally or vertically.
• Durability: Made with high-quality materials for a long service life.
• Safety: Features an on/off switch and a heavy-duty cable with polarized plug.

Ideal for:

• Medical units
• Private clinics
• Daycares
• Maternity centers

Operation of the OTSA Model LB-3 Electric Bottle Washer

To ensure safe and efficient operation, follow these steps:

1. Connection:

• Connect the polarized plug of the washer to a 120 V / 60 Hz outlet.

2. Turning On:

• Make sure the switch is in the "off" position.
• Turn on the equipment by placing the switch in the "on" position.

3. Washing:

• Submerge the bottle in soapy water.
• Hold the bottle firmly and insert it into one of the side brushes.
• Caution: Do not tilt the bottle during washing, as it could break a brush or fly off.
• Verify that all internal residues have been removed from the bottle.
• If necessary, repeat step 3 for a complete cleaning.

4. Rinsing:

• Rinse the bottle with clean water to remove soap.

5. Turning Off:

• When finished washing, place the switch in the "off" position.

Important:

• Safety: Do not try to hold the brushes while the equipment is in operation.
• Maintenance: Clean the washer after each use to ensure proper functioning.
• Refer to the user manual for more detailed instructions.
