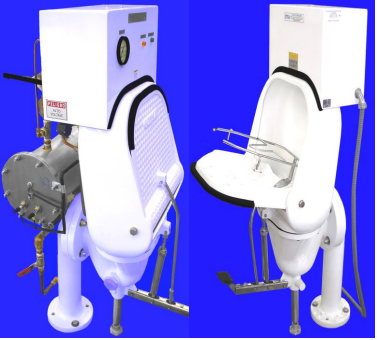

COMMODE WASHER IN CAST ALUMINUM MODEL LC 2 AG OTSA

Cabinet-Type Steam-Generated Commode and Urinal Washer and Disinfector

Description:

• Rectangular chamber (housing): Made of cast aluminum, resistant to corrosion and high temperatures.
• Operation control: Allows the user to control the equipment from anywhere, even remotely.
• Trap (S-trap) and elbow for floor connection: Made of cast aluminum, for greater durability.
• Commode holding arms: Made of chromed cast bronze or aluminum, for greater resistance.
• Connections: Made of bronze, brass, and stainless steel, for a longer lifespan.
• Hinged door: Opens with a foot pedal and closes slowly by means of a hydraulic cylinder, for greater safety.
• Safety system: Prevents accidental opening of the door during the sterilization process.

Steam generator:

• Construction: Made entirely of T-304 stainless steel, resistant to corrosion and high temperatures.
• Electrical connection: Connects to a 120 V / 60 Hz AC power line.
• Operation: Steam generation starts automatically when the equipment is turned on. Water replenishment is automatically controlled by electrodes or a float.
• Alarms: Features a water supply failure alarm and a digital temperature indicator.

Installation:

• Requires plumbing installation, steam inlet, atmospheric exhaust, and drainage discharge.

Material options:

• Hood, elbow, S-trap, and lid: Aluminum, stainless steel, or polyester with fiberglass.

Finish:

• Aluminum and polyester: Oven-baked polyurethane paint for high resistance to acids, alkalis, and operating temperatures.

Operation:

• Automatic: Electronic control by microprocessor with pre-programmed cycles.
• Washing cycle: 30/60 seconds with water inlet.
• Disinfection cycle: 30/60 seconds by means of self-generated steam.
• Cycle start button.
• Digital temperature indicator.
• Control panel with membrane keys.
• Selection of at least three operating cycles.
• Digital display: Indicates the cycle and phase of the selected program.
• Flow restrictors, solenoids, steam traps, aerators, and diffusing nozzles: Integrated to prevent splashes and achieve perfect washing.

Accessories (optional):

• Cabinets.
• Commode supports (Racks).
• Spare parts.
• Door safety sensor.

Consumables:

• Powder detergent or liquid soap (quantities according to client needs).
