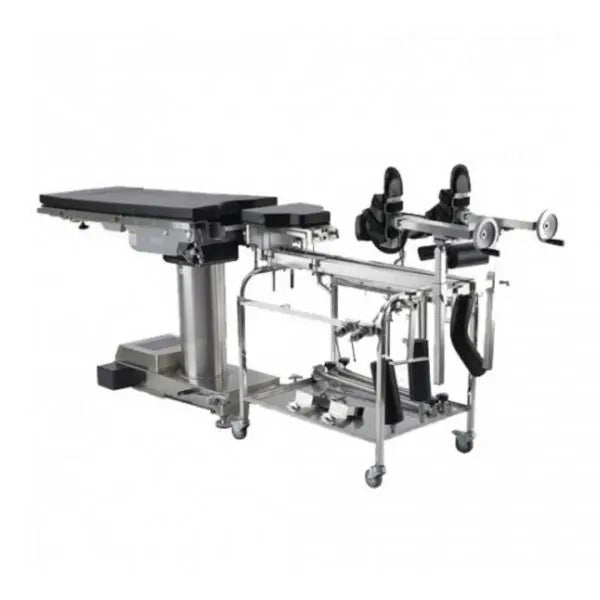

Universal Electro-hydraulic Orthopedic Surgical Table

FEATURES

• Overall length with headrest and leg extensions of 200 cm.
• Stainless steel base.
• Column made of chrome-nickel stainless steel.
• Surface frame and side rails made of chrome-nickel stainless steel.
• Radiolucent with cassette holder in all sections. Accessible for use with image intensifier.
• Table with 4 sections: head, back, pelvis, and legs.
• Pelvis and pelvic limbs in independent, removable, and foldable plates with scissor movement.
• Control with RESET function to return the table to the initial horizontal position.
• Electro-hydraulic movements via a wired remote control:
• Longitudinal displacement of the tabletop.
• Head plate adjustment: 60°/90°.
• Trendelenburg 30° and reverse Trendelenburg 30°.
• Left and right lateral tilt of 20°/20°.
• Backrest section: 80°/40°.
• Flexion and reverse flexion: 210°/100°.
• Leg section: 15°/90°.
• Height adjustment: 685 to 1,135mm.
• Antibacterial and antistatic cushion with special foam, waterproof and detachable, with or without seams, electrically conductive.
• Back with integrated kidney elevator.

ORTHOPEDIC TRACTION UNIT

• Orthopedic extension device with removable radiolucent pelvic support with perineal post.
• Telescopic or abduction extension bars.
• Traction boots for adult and pediatric sizes with attachments for traction.
• Knee support for tibia procedures.
• Extension device for tibia procedures.
• Femoral counter-traction post.
• Accessory for lateral decubitus traction.
• Articulated cross-arm support.
• Accessory storage cart.
