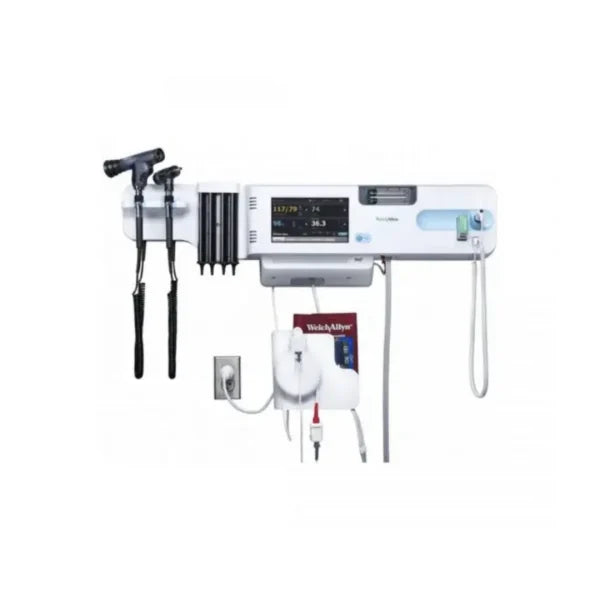

Connex Wall Monitor Masimo Spo2 Suretemp Plus Scs Panoptic & Macroview

FEATURES

• Integrated otoscope and ophthalmoscope, choose from a variety of options
• SureBP™ provides 15-second NIBP and pulse rate readings
• Optional Nellcor® or Masimo® pulse oximetry
• Optional continuous non-invasive total hemoglobin monitoring
• Integrated cable management system
• SureTemp® Plus thermometer and/or Braun ThermoScan® PRO 4000 ear thermometer
• Large, easy-to-read color touchscreen display.

TECHNICAL SPECIFICATIONS

• Screen dimensions: 20.3 cm (H) x 10.2 cm (V) (8” x 4” ) viewing area.
• Speaker volume: 57 dB at 1.0 meter.
• Battery: Lithium-ion composition.
• Nurse call connection: Nurse call: maximum 25 V AC or 60 V DC at 1 A maximum.
• Operating temperature: 10 °C to 40 °C (50 °F to 104 °F), storage temperature -20 °C to 50 °C (-4 °F to 122 °F).
• Operating altitude: -170 m to 3,048 m (-557 to 10,000 feet).
• Operating humidity: 15 to 95% non-condensing; storage humidity 15% to 95% non-condensing.
• Handle: Handle output 3.00 to 3.90 V; 0.70 to 1.50 A.
• Power handle cord length: 767: 3.6 m (12 feet).
• Electrical rating: 100-240 V AC, 50-60 Hz, 1.50-0.08 A.

INCLUDES

• MacroView Otoscope and integrated PanOptic Ophthalmoscope
• SureBP™ provides 15-second NIBP and pulse rate readings
• Masimo® pulse oximetry
• Optional continuous non-invasive total hemoglobin monitoring
• Integrated cable management system
• SureTemp® Plus thermometer
• Large, easy-to-read color touchscreen display
