15″ Patient Monitor

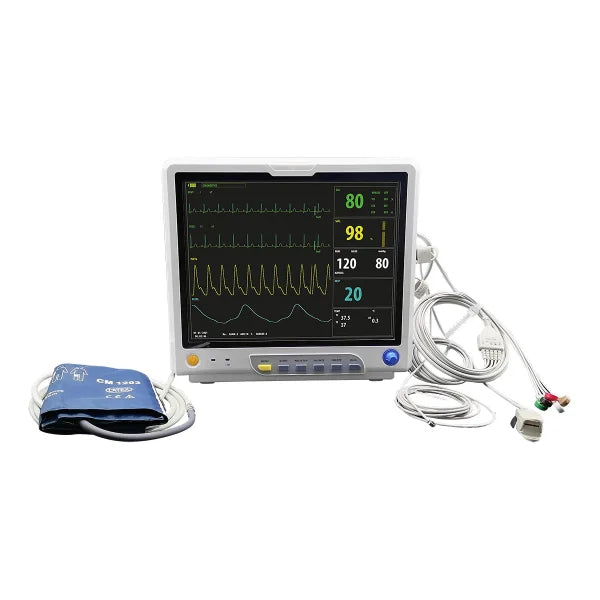

15-inch Vital Signs Monitor Description:

The M15 XIGNAL patient monitor is a medical device that displays a variety of critical medical parameters, including ECG, RESP, SpO2, PR, NIBP, and 2 temperature channels, among others. This device is compact and portable and features an integrated battery for easy patient mobility.

Features:

The M15 XIGNAL features a 15-inch color LCD screen and a 17-language interface for easy use anywhere in the world. It also comes with a series of accessories, such as an adult SpO2 sensor, an NIBP hose, an adult NIBP cuff, a temperature sensor, an ECG cable, disposable ECG patches, a power cord, and a user manual.

The M15 XIGNAL's fanless technology makes it an energy-saving and clean device, reducing the possibility of cross-infection. This monitor is suitable for use in adult, pediatric, and neonatal patients, and features a standard interface, OxyCRG, trend graphs, and an interface with large characters and patient and bed data for easy viewing.

Technical Specifications:

The dimensions of the M15 XIGNAL patient monitor are 363 mm (L) x 168 mm (W) x 339 mm (H) and its weight is 3.5 kg. The device has a wide range of functions, such as audible and visual alarms, trend data storage, NIBP measurements, event alarm markers, and drug concentration calculation.

Usage:

The M15 XIGNAL patient monitor is an essential medical tool for measuring and recording blood pressure, heart rate, respiratory rate, body temperature, and other vital signs of patients. This device is commonly used in hospitals, clinics, and medical offices to monitor patients' health status and detect any changes in their medical condition. It can also be useful for home health monitoring, especially for those with chronic illnesses or who need constant monitoring of their vital signs.

Additional technical features of the M15 XIGNAL patient monitor:

• The M15 XIGNAL patient monitor has a heart rate measurement range of 15-350 bpm, with an accuracy of ±1% or 1 bpm, whichever is greater.
• It features ST segment and arrhythmia analysis, with a measurement and alarm range of -2.0 mV – +2.0 mV and an accuracy of -8 mV – +8.0 mV ±0.04 mV or 10%, whichever is greater.
• Respiratory rate is measured using an R-F impedance method (RA-LL), with a measurement and alarm range of 0-150 rpm, a resolution of 1 rpm, and a measurement accuracy of ±2 rpm.
• The M15 XIGNAL patient monitor has a blood oxygen saturation (SpO2) measurement and alarm range of 0-100%, with a resolution of 1% and a measurement accuracy of 70%-100%: ±2%, 0%-69%: unspecified.
• The systolic (SYS), diastolic (DIA), and mean (MEAN) blood pressure measurement and alarm range is 10-270 mmHg, with a resolution of 1 mmHg and a maximum average deviation measurement accuracy of ±3 mmHg and a maximum standard deviation of 8 mmHg.
• The M15 XIGNAL patient monitor features an operation mode via keys and buttons, and displays up to 8 waveform channels on the screen.

These are just some of the technical features of the M15 XIGNAL patient monitor. For more detailed technical information, please refer to the device's data sheet or contact the support team.
