Electrosurgery unit 100W Cat. DEX-B1600+ Deltronix
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

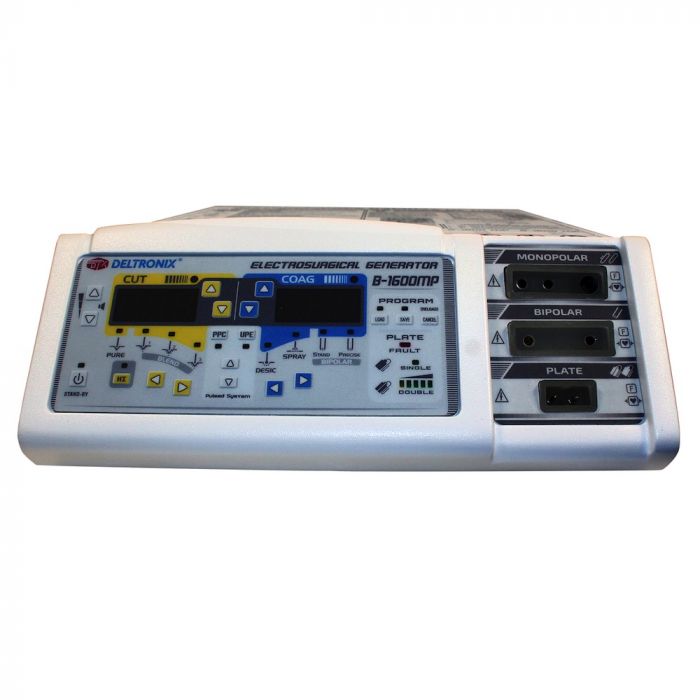

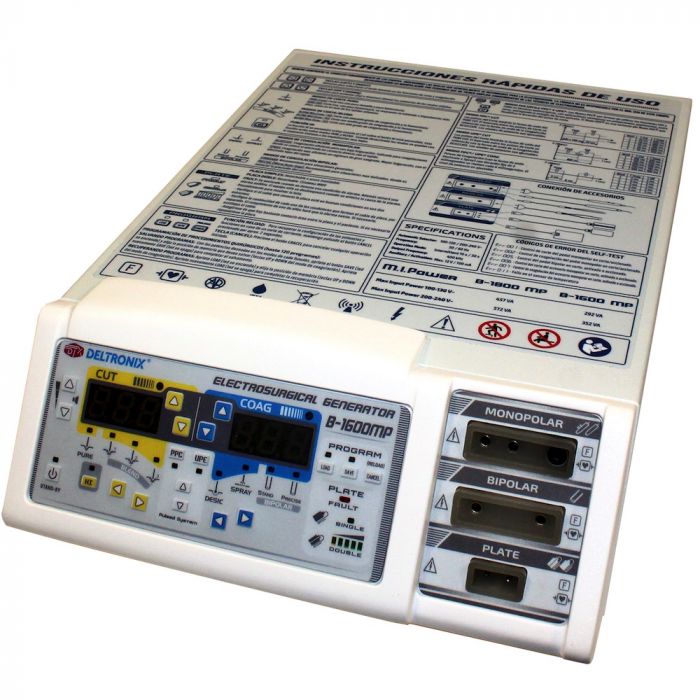

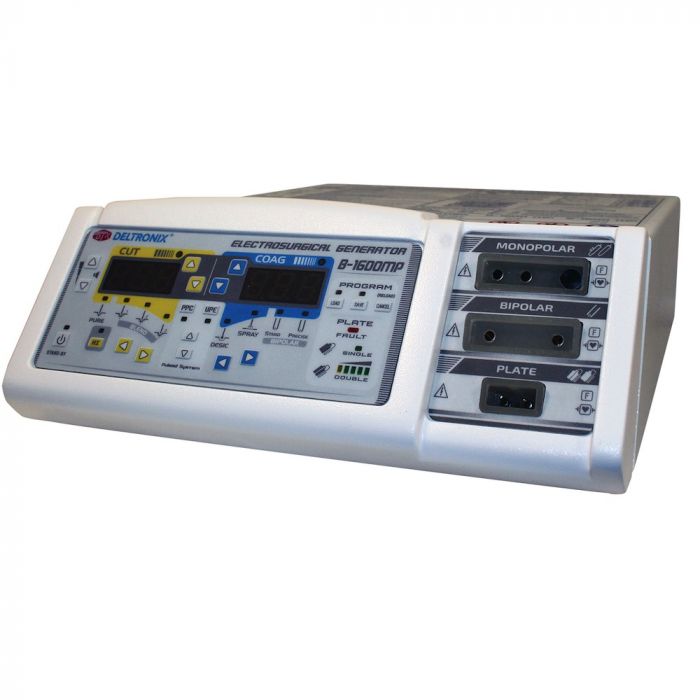

Electrosurgery Unit 100W Cat. DEX-B1600+ Deltronix
Description:
The Deltronix Plus family of electrosurgical generators are dedicated to the electrosurgical cutting and coagulation of live human tissue. This is achieved through high-frequency energy.
Their generators can coagulate using both monopolar and bipolar techniques. Ideal equipment for use in pediatric, gynecological, plastic-aesthetic, oral and maxillofacial, endoscopic surgeries, among others, depending on the chosen model and power.
Uses:
- Pediatric, gynecological, plastic-aesthetic, oral and maxillofacial, endoscopic surgeries, among others, depending on the chosen model and power.
Features:
- Isolated output configuration.
- Constructed to eliminate the risk of electric shock or damage to the equipment caused by liquid dripping during use.
- Aluminum casing with high-resistance epoxy electrostatic paint.
- Natural convection ventilation.
- Display with 6 7-segment indicators.
- Auxiliary port is a connector for a P2 plug linked to the contacts of a relay.
- The relay contacts remain closed while the output is powered and open the rest of the time. (can be used to activate a smoke evacuator, for example).
- Cut
- PURE CUT (Low / Hi): 100W
- BLEND I / MIN (Low/Hi): 100W
- BLEND 2 / MID (Low/Hi): 100W
- BLEND 3 / MAX (Low/Hi): 100W
- Coagulation:
- DESSICATE: 100W
- SPRAY: 100W
- Bipolar:
- STANDARD: 100W
- PRECISE: 100W
Technical Specifications
- Dimensions: 285 x 400 x 100 mm.
- Weight: 4.3 Kg.
- Power supply voltage: 127/220 VAC, 50/60 Hz - Auto selector.
- Rated load: 500 Ohms.
- Oscillator frequency: Approx. 400 kHz.
- Four PURE, BLEND Min and BLEND Max functions for monopolar cutting with HI crest factor, four with LOW crest factor and pulsed modes.
- Monopolar coagulation: DESICCATE, SPRAY (FULGURATE) and PULSED modes.
- Two PULSED modes: PPC® and UPE® with five levels for each mode.
- Tone indication of Cut and Coagulation function.
- Feedback Power Adjust (FPA)®.
- Patient resistance monitoring system (MPRGraph®), with automatic identification of plate type (single, double).
- Automatic equipment check-up with error code on the panel.
- Activation by hand control and/or footswitch.
- Remote control for power adjustment by footswitch or manual control handle.
- Recovery of most recently used settings, RELOAD function.
- Activation tone volume adjustment on the front panel.
- Standby key. • Auxiliary door / activation.
- Connectors with LED backlighting.
- Simple monopolar pencil with silicone cable (2.5m).
- Manual control pencil with silicone cable (2.0m).
- Flexible stainless steel neutral plate (140x195mm) with adapter cable.
- Simple footswitch with male Canon plug and cable.
- AC cable. *User manual.
