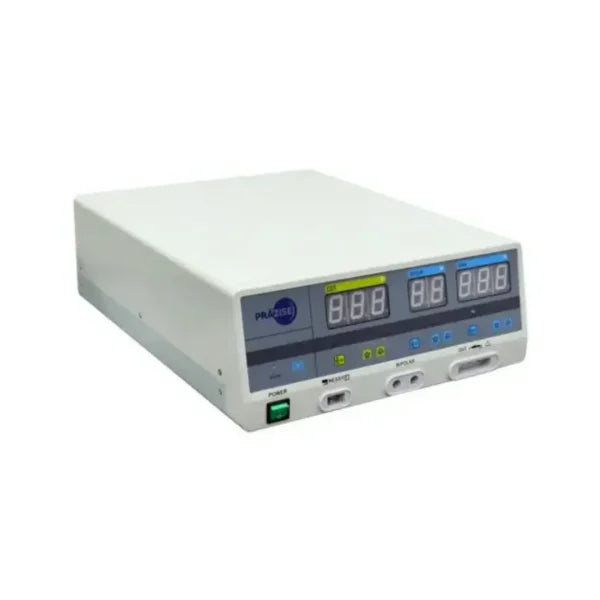

High Frequency Electrosurgery Unit 200W
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
200W High Frequency Electrosurgery Unit
FEATURES
Ambient temperature range: 5 C ~ 40 C
Relative humidity range: <80;
Atmospheric pressure range: 86.0-106.0 kpa;
Power supply: 220V (+ 22V), 50Hz (+1)
Working frequency: 360-460 kHz.
Simple automatic bipolar conversion.
Rated power of the equipment: 880 VA + 10%.
Equipment type: CF
The power consumption of the whole machine is less than 1000VA
TECHNICAL SPECIFICATIONS
Maximum output power: 200W
Working mode: 2 types of cutting
2 types of Coag
1 type of bipolar coagulation
It has a memory function, restarts the power from the last session
It has a neutral electrode contact quality control.
Circuit, detection and contact plate area with the patient.
Effective contact area, plate and skin system evaluation.
If the contact area is at a dangerous level, it automatically cuts off the output system and triggers the alarm.
Single pole and bipolar negative plate can be detected
FUNCTIONS
Cut: Maximum output power: 200W (load 500)
Mixed cut: maximum output power: 150 W (load 500)
Coag 1: maximum output power: 100W (load 500)
Coag 2: Maximum output power: 80W (load 500)
Bipolar coil: maximum output power: 50W (load 200)
FUNCTIONAL CHARACTERISTICS
Cut: pure cut, its effect is fine cutting, fresh tissue surface without eschar;
Mixed cut 1: Produces a coagulation effect on the cut.
Coag1: can be called soft electrocoagulation or spot coagulation. It has a relatively deep coagulation layer and a relatively small scope of action.
It can be used with endoscopy.
Coag 2: can be called strong electrocoagulation, also known as surface coagulation, relatively fast coagulation, larger area of action.
Bipolar coagulation: Can quickly achieve the coagulation effect at startup, automatically cuts off the output power during tissue coagulation, achieving excellent results.
Usage: This equipment is designed for surgeries requiring precise cuts and effective coagulation, ensuring shorter recovery times and improved surgical outcomes. It is ideal for surgeons seeking control and precision in a variety of surgical procedures.
Benefits:
- Superior cutting and coagulation performance for less invasive surgeries.
- Reduced risks thanks to advanced control and detection systems.
- Ease of use with setting memory and integrated safety alarms.
Country of Origin: China
