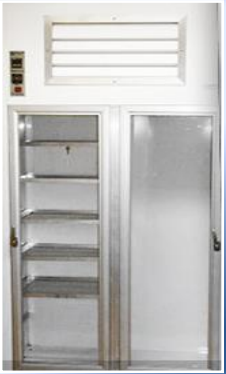

INHALOTHERAPY DRYING UNIT, MODEL USEI-2005 OTSA

Hot Air Recirculation and Other Exclusive Features

Manufacturas OTSA, S.A. de C.V. is a company with over 30 years of experience in the design and manufacture of high-quality, fine medical equipment. Its hospital line is intended to meet the needs of laboratories, clinics, the pharmaceutical industry, the food industry, among others, and complies with the strictest international standards for construction and operation.

Sterile Dryer for Tubes, Inhalotherapy and Anesthesia Equipment, Based on Laminar Flow

Features:

• Fixed Electro-Hydraulic Equipment.
• Microprocessor Controlled.
• Constructed Entirely of Corrosion-Proof Aluminum.
• Drying Module.
• Hot Air Recirculation System for Fast Drying.
• General Dimensions:
  • 220 cm high
  • 120 cm wide
  • 52 cm deep
• Electrical Supply: 120 V, 60 HZ.
• Heater Capacity: 1800 Watts.

Other Exclusive Features:

• Microprocessor that controls drying times and temperature up to 4 hours with On/Off pilot light and Audible Alarm indicating end of cycle.
• 2 Drying Chambers:
  • One for placing trays with rails at different heights.
  • The other with holders for hanging tubes.
• For easy loading, tube holders slide out to a convenient height.
  • Accommodates tubes over 5 ft long.
  • Tube holders can be replaced with trays for parts or bag dryers.
• Pre-filters: Removes large particles, front-mounted for easy replacement.
• 100% High-Efficiency Certified Hepa Filters: Removes all particles larger than 0.3 microns that carry bacteria and viruses.
• Removable Trays for placing material:
  • 3 large trays measuring 46 x 46 cm.
  • 2 trays measuring 46 x 23 cm.
  • All coated to prevent burns to the touch.
• 2 transparent doors that allow observation of the material in process.
• Pre-filtered air inlet at the top front for large particles.
• Separate Fans: Each chamber has its own fan for quiet operation and large air volume.
• Insulation in the walls that retains more than 80% of the hot air, which recirculates through the Hepa Filter, resulting in more efficient drying.
  • The typical process time is 40 minutes.
