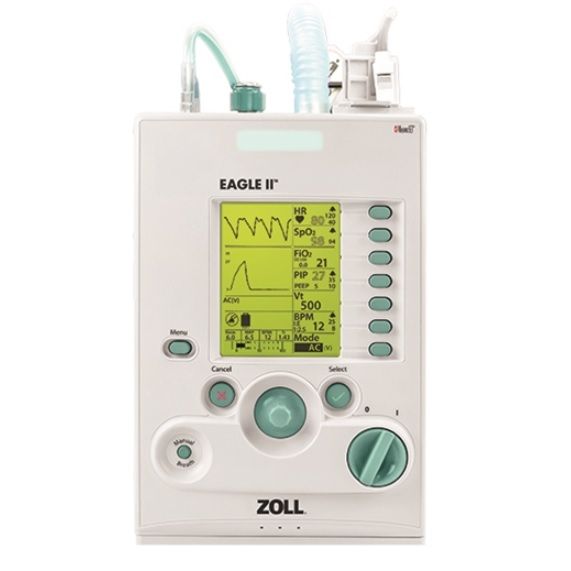

Ventilator Eagle II Cat ZOL-EAGLE-II Zoll

Eagle II Cat ZOL-EAGLE-II Zoll Ventilator

Features:

• Multipurpose Ventilator: Ideal for the emergency department, intensive care unit, and intra-hospital transfers
• Full patient range: From infant and pediatric patients (≥ 5 kg) to adult patients
• Smart Help™ Display: Guides the operator with on-screen prompts to respond to alarms
• Intuitive Design: Simple, user-friendly interface
• Unrivaled battery run time: No additional backup battery required thanks to 10-hour battery run time. Battery charges to 90% in 2 hours.

Specifications:

• Ventilatory modes: AC, SIMV, CPAP, BL
• Ventilation control: volume and pressure
• Special functions: plateau pressure, manual ventilation, apnea backup, oxygen in use, inverted I:E ratio
• Flow: 0 to 100 LPM at 40 cm H2O
• Respiratory rate: 1 to 80 bpm
• Tidal volume: 50 to 2000 ml ATPD (dry gas at ambient pressure and temperature) ± 10% of setting
• Inspiratory time: 0.3 to 5.0 seconds
• I:E ratio: 1:99 to 4.0:1.0
• FiO2: 21 to 100% ± 3% full scale ± 10% of setting
• PEEP: 0 to 30 cm H2O
• Pressure support: 0 to 60 cm H2O
• Maximum inspiratory pressure (PIP): 10 to 80 cm H2O
• Sensitivity (trigger): -0.5 to -6.0 cm H2O
• Oxygen inlet pressure: 55 psig (-25%; + 20%) (380 kPa)

Safety Specifications:

• Upper airway pressure limit: values from 20 to 100 cm H2O
• Lower airway pressure limit: off, from 3 to 35 cm H2O
• Upper respiratory rate alarm limit bpm: off, 2 to 99
• Lower respiratory rate alarm limit bpm: 2 to 40
• LED status/alarm indicator: red, yellow and green, adjustable LCD/LED

Environmental Features

• Operating voltages: 100 to 240 V AC (50/60 Hz) or 12.5 to 28.0 V DC
• Run time: 10 hours autonomy with internal battery
• Temperature range:
• Operating: -25 to 49 °C (-13 to 120 °F) with battery charging, battery discharged and operating on AC power supply
• Battery charging: 0 to 45 °C (32 to 113 °F)
• Extended storage: -15 to 21 °C (5 to 71 °F) under optimal storage conditions

General Specifications

• Size: 20.3 cm W x 31.8 cm H x 11.4 cm D (8.0" W x 12.5" H x 4.5" D)
• Weight: 4.4 kg (9.7 lbs)
