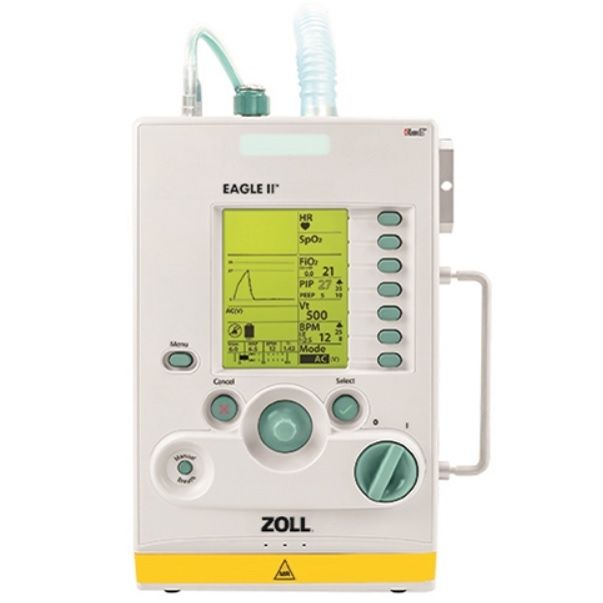

Eagle II MRI Ventilator, for magnetic resonance imaging Cat ZOL-Eagle-II-MRI Zoll
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Eagle II MRI Ventilator, for magnetic resonance imaging Cat ZOL-Eagle-II-MRI Zoll
Features:
- MRI Safe Under Certain Conditions: Designed to meet the demanding requirements for use when ventilated patients require magnetic resonance imaging (MRI).
- Full Patient Range: From infant and pediatric patients (≥ 5 kg) to adult patients.
- Multi-purpose Ventilator: Ideal for the emergency department, intensive care unit, and intra-hospital transfers. Can remain with the patient, even in the MRI room.
- Intuitive Design: Simple and easy-to-use interface.
- Smart Help™ Display: Guides the operator through on-screen commands to respond to alarms.
- Unmatched Battery Run Time: No need for an additional backup battery thanks to the 10-hour battery run time. The battery charges to 90% in 2 hours.
Clinical Specifications
- Ventilation Modes: AC, SIMV, CPAP, BL
- Ventilation Control: Volume and pressure
- Special Functions: Plateau pressure, manual ventilation, apnea backup, oxygen in use, inverse I:E ratio
- Flow: 0 to 100 LPM at 40 cm H2O
- Respiratory Rate: 1 to 80 bpm
- Tidal Volume: 50 to 2000 ml ATPD (dry gas at ambient pressure and temperature) ± 10% of setting
- Inspiratory Time: 0.3 to 5.0 seconds
- I:E Ratio: 1:99 to 4.0:1.0
- FiO: 2: 21 to 100% ± 3% of full scale ± 10% of setting
- PEEP: 0 to 30 cm H2O
- Pressure Support: 0 to 60 cm H2O
- Peak Inspiratory Pressure (PIP): 10 to 80 cm H 2O
- Sensitivity (trigger): -0.5 to -6.0 cm H2O
- Oxygen Inlet Pressure: 55 psig (-25%; + 20%) (380 kPa)
Safety Specifications
- Upper Airway Pressure Limit: 20 to 100 cm H2O values
- Lower Airway Pressure Limit: off, 3 to 35 cm H2O
- Upper Respiratory Rate Alarm Limit bpm: off, 2 to 99
- Lower Respiratory Rate Alarm Limit bpm: 2 to 40
- Status/Alarm LED Indicator: red, yellow, and green, adjustable LCD/LED
Environmental Characteristics
- Operating Voltages: 100 to 240 V AC (50/60 Hz) or 12.5 to 28.0 V DC
- Run Time: 10 hours autonomy with internal battery
- Temperature Range:
- Operating: -25 to 49 °C (-13 to 120 °F) with battery charging, battery discharge, and AC power operation
- Battery Charging: 0 to 45 °C (32 to 113 °F)
- Extended Storage: -15 to 21 °C (5 to 71 °F) under optimal storage conditions
- Altitude Compensation: automatic -601 to 7620 meters (-2000 to 25,000 feet)
General Specifications
- Size: 20.3 cm wide x 31.8 cm high x 11.4 cm deep (8.0” wide x 12.5” high x 4.5” deep)
- Weight: 4.4 kg (9.7 lbs)
