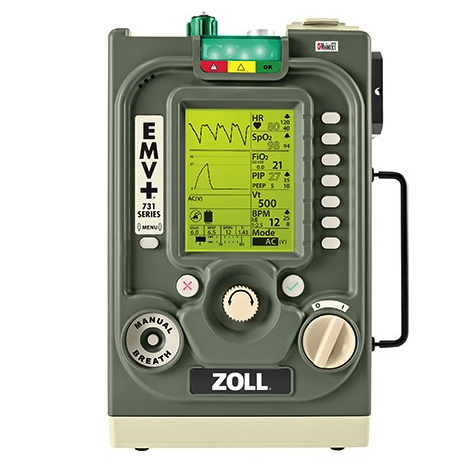

EMV+ Portable Ventilator Series 731 Cat. ZOL-EMV+ Zoll

ZOL-EMV+ Zoll Series 731 EMV+ Portable Ventilator

Features:

• Full patient range: From infant and pediatric patients (≥ 5 kg) to adult patients
• Smart Help™ Display: Guides the operator with on-screen prompts to respond to alarms
• Versatility with standard military equipment: Works with deployed oxygen concentrator systems used by military forces
• Unrivaled battery run time: No need for an additional backup battery thanks to the 10-hour battery run time. The battery charges to 90% in 2 hours.
• Flight certification: Flight certified. Approved for use during all phases of flight aboard fixed-wing or rotary-wing aircraft of the U.S. Army and Air Force.
• Silent and dark mode: Can be switched to silent and dark mode to prevent interference with advanced infrared night vision equipment
• Rugged all-weather device: Designed for the unique needs of military forces to operate in austere environments. Complies with an unparalleled set of military standards.

Clinical Specifications

• Ventilatory modes: AC, SIMV, CPAP, BL
• Ventilation control: volume and pressure
• Special functions: plateau pressure, manual ventilation, apnea backup, oxygen in use, inverse I:E ratio
• Flow: 0 to 100 LPM at 40 cm H2O
• Respiratory rate: 1 to 80 rpm
• Tidal volume: 50 to 2000 ml ATPD (dry gas at ambient pressure and temperature) ± 10% of setting
• Inspiratory time: 0.3 to 5.0 seconds
• I:E ratio: 1:99 to 4.0:1.0
• FiO 2: 21 to 100% ± 3% full scale ± 10% of setting
• PEEP: 0 to 30 cm H2O
• Pressure support: 0 to 60 cm H2O
• Peak inspiratory pressure (PIP): 10 to 80 cm H2O
• Sensitivity (trigger): -0.5 to -6.0 cm H2O
• Oxygen inlet pressure: 55 psig (-25%; + 20%) (380 kPa)

Safety Specifications:

• Upper airway pressure limit: 20 to 100 cm H2O values
• Lower airway pressure limit: off, 3 to 35 cm H2O
• Upper respiratory rate alarm limit rpm: off, 2 to 99
• Lower respiratory rate alarm limit rpm: 2 to 40
• Status/alarm LED indicator: red, yellow, and green, adjustable LCD/LED

Environmental Features:

• Operating voltages: 100 to 240 VAC (50/60 Hz) or 12.5 to 28.0 VDC
• Operating time: 10 hours autonomy with internal battery
• Temperature range: Operating: -25 to 49 °C (-13 to 120 °F) with battery charging, battery discharged and operating with AC power supply
• Battery charging: 0 to 45 °C (32 to 113 °F)
• Extended storage: -15 to 21 °C (5 to 71 °F) under optimal storage conditions
• Altitude compensation: automatic -601 to 7620 meters (-2000 to 25,000 feet)
• Flight certification: approved for most U.S. military aircraft
• Temperature and humidity tests: MIL STD 810F
• Liquid ingress tests: MIL STD 810 F
• Impact and vibration tests: MIL STD 810F
• Altitude tests: MIL STD 810F
• EMC tests: MIL STD 461F
• Military vehicle power: MIL STD 1275 F

General Specifications:

• Size: 20.3 cm wide x 31.8 cm high x 11.4 cm deep (8.0” wide x 12.5” high x 4.5” deep)
• Weight: 4.4 kg (9.7 pounds)
